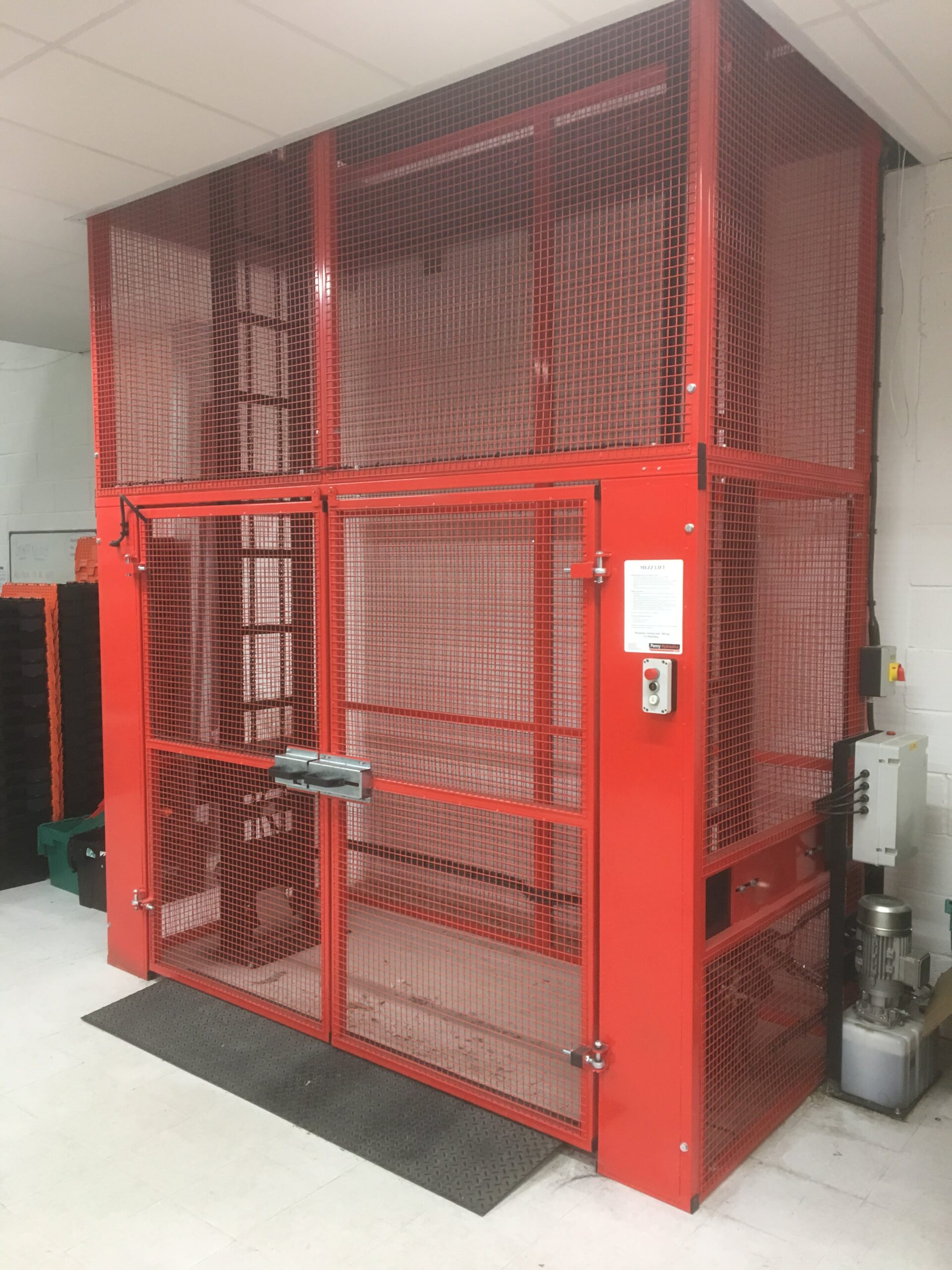

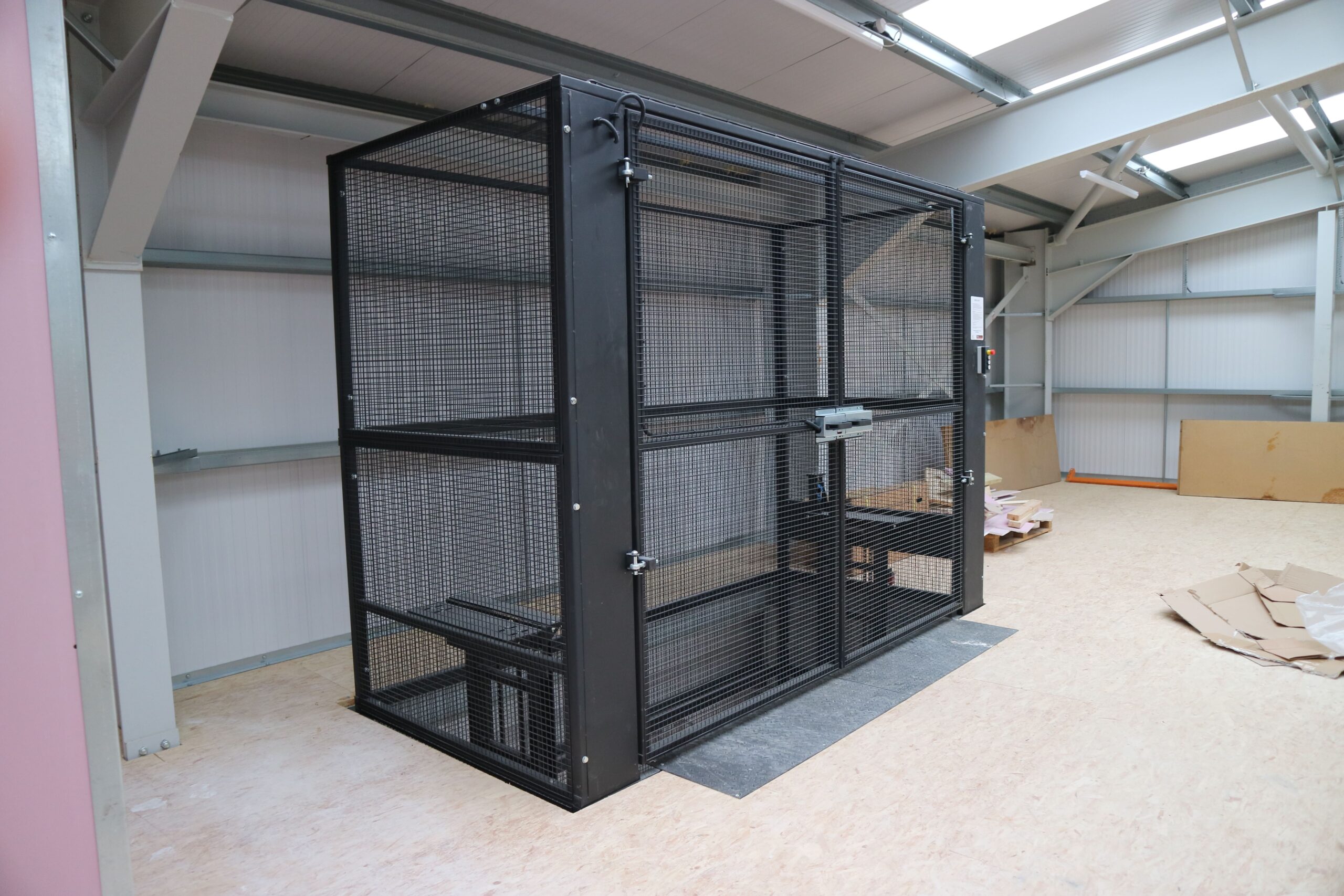

Edit D1.00 01 49 08.Still0111[1] Boundary Mill 500Kg MWL 2000Mm X 1000Mm Platform 2 Min Scaled[1] Boundary Mill 500Kg MWL 2000Mm X 1000Mm Platform 4 Min Scaled[1] IMG 0051 Min Scaled[1] IMG 0052 Min Scaled[1] IMG 0066 Min Scaled[1] IMG 0097 Min Scaled[1] IMG 0101 Min Scaled[1] IMG 0133 Min Scaled[1] IMG 0135 Min Scaled[1] IMG 0155 Min Scaled[1] IMG 0239 Min Scaled[1] IMG 0247 Min Scaled[1] IMG 2981 Min Scaled[1] IMG 4101 Min Scaled[1] IMG 3985 Min Scaled[1] So Storage 3 Min[1] Goods Lift for Bathams Brewery: Case Study Mezzanine Goods Lift Helps Self Storage Company grow their business

4-6 weeks lead time

We’re Here to Help

If you can’t find what you’re looking for, please contact us or call directly +44 (0) 1246 811475

All lifts are designed and manufactured to order. The specification shown is our standard option, but we can just as easily build to your required dimensions.

SKU: MEZZPRO

Max Working Load (MWL) 500 kg

Key Features

  • Floor mounted (no pit required)
  • Self-supporting mesh-clad shaft
  • Constant pressure control buttons at both levels
  • Standard travel height of up to 4m (increased height also available)
  • Standard usable platform size of 1300mm x 1300mm
  • Same-side or through-car loading
  • 2 stops (ground plus 1 level)
  • Electrical & mechanical interlocking gates
  • Emergency stop button
  • Anti-slip platform surface

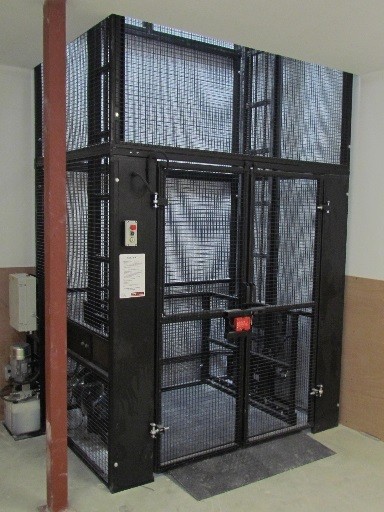

MezzPro 500kg Mezzanine Goods Lift is specially designed to handle loads of up to 500kg between 2 or 3 floors in warehouses, factories, stores, and workshops – maximising usable floor space and streamlining operational efficiency.

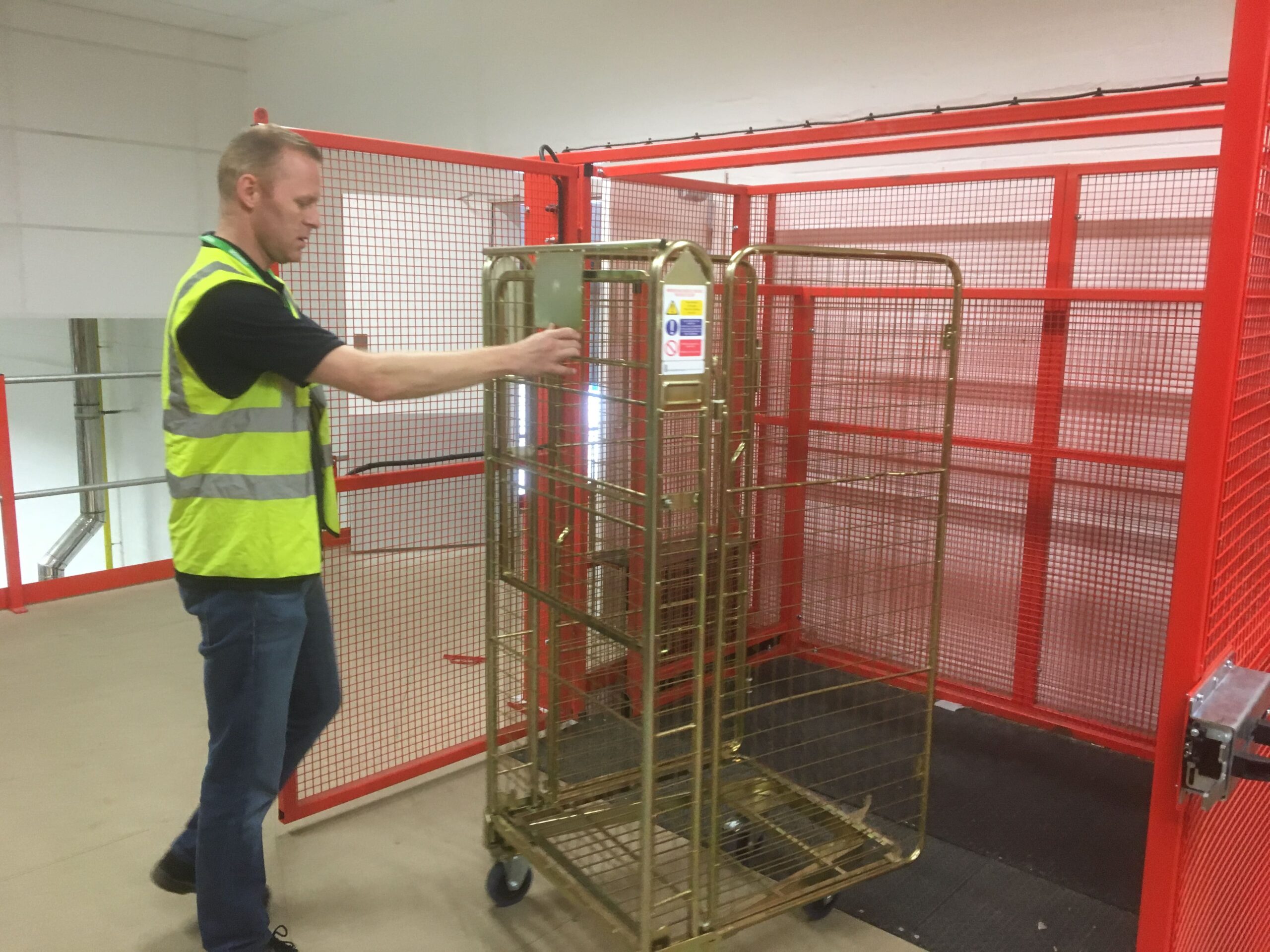

The MezzPro 500kg mezzanine lift, also known as a trolley lift or roll cage lift, is an opposed mast mechanism that enables users to safely and efficiently transport pallets, trolleys, and roll cages of up to 500kg to secondary storage areas in industrial setups. All our roll cage and trolley lifts are designed and manufactured in the UK with a typical 4-week lead time.

Customers will also benefit from unlimited free site assessments before any project is undertaken, alongside a choice between standard, off-the-shelf models or completely bespoke designs. Optional extras include increased travel height, stops, and platform sizes, as well as outdoor installations and various finish colours.

MezzPro Mezzanine Trolley Lift Uses

The surface-mounted design of a mezzanine trolley lift avoids the costly and time-consuming structural changes required with a pit-fitted installation. Instead, its compact, free-standing build makes our MezzPro 500kg goods lift a simple, effective option for most working environments.

A trolley and roll cage lift from Penny Engineering is ideal for:

  • Loaded pallets of products, materials, or supplies
  • Bulk boxes & crates containing inventory & tools
  • Machinery & equipment
  • Trolley & roll cages
  • Wheelie bins (domestic & commercial)
  • Product deliveries
  • General storage

CE marked and built-in conformance with:

  • Machinery Directive 2006/42/EC
  • Lifting Operations and Lifting Equipment Regulations 1998
  • The Provision and Use of Work Equipment Regulations 1998

Need pricing or advice?

Useful Information

Compare your options

Related Products

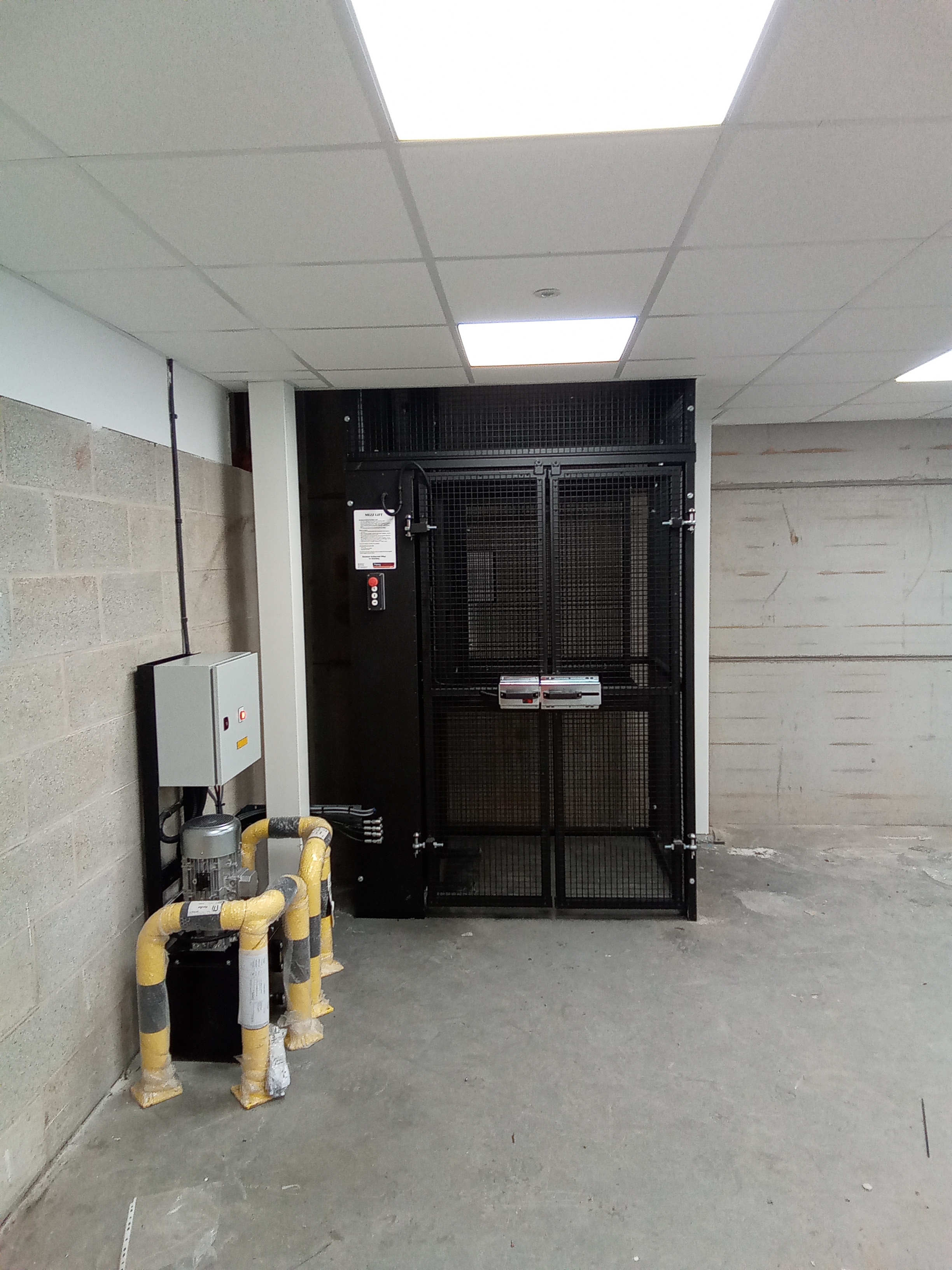

A black metal lift with mesh doors is installed at the end of a room with concrete walls and floor. Nearby, insulated pipes and an electrical control box are mounted on the left wall under fluorescent ceiling lights.
